  3. Rich Solar - MEGA 100 SLIM | 100 Watt Monocrystalline Solar Panel

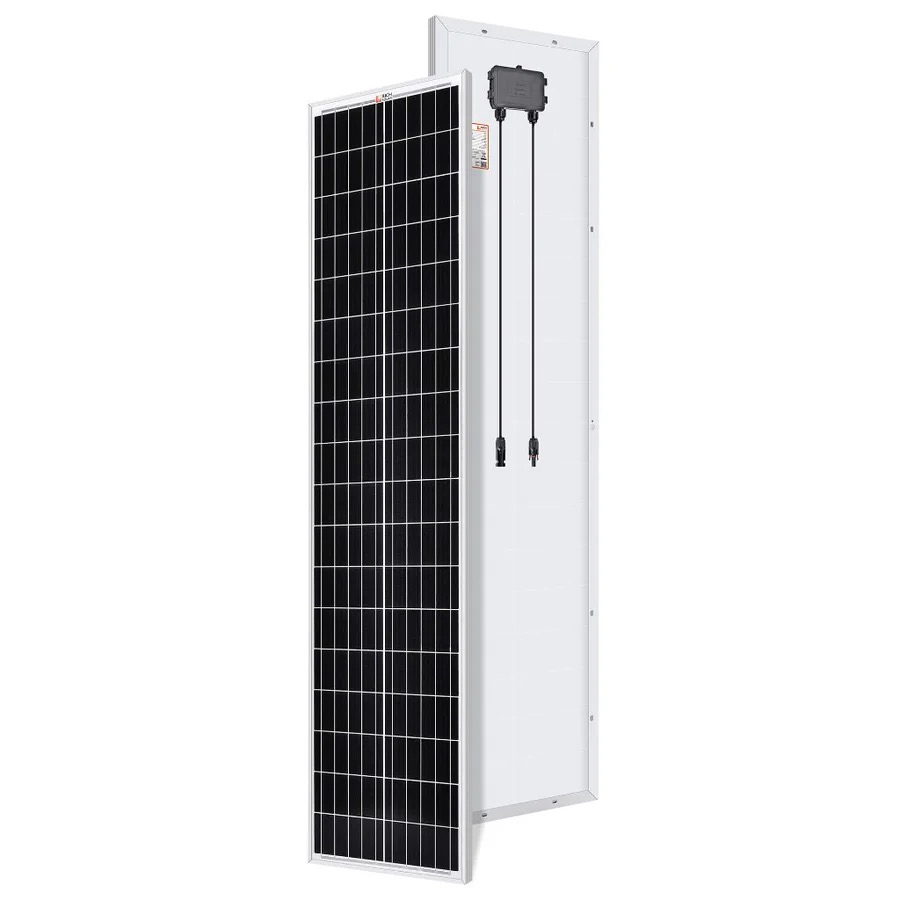

Rich Solar - MEGA 100 SLIM | 100 Watt Monocrystalline Solar Panel

https://crm.sotasolar.com/web/image/product.template/301/image_1920?unique=419e55a
(0 review)

$ 129.00 129.0 USD $ 129.00

$ 129.00

Not Available For Sale

  • Open Circuit Voltage-VOC
  • Peak Power Watts-PMAX (Wp)
  • Maximum Power Voltage-VMPP (V)
  • Short Circuit Current-ISC (A)
  • Maximum Series Fuse Rating

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • 12V off-grid solar panel.
  • 0~+5W guaranteed positive power output.
  • IP 65 or IP 67 rated.
  • Built with strong tempered glass and aluminum frame.
  • Certified to withstand challenging environmental conditions.
  • Excellent low light performance on cloudy days, mornings and evenings.

Installation

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Warranty

  • 25 years 80% output power.
  • 5 years materials and workmanship.
  • 1 year materials for accessories.


Built-in Components

  • RICH SOLAR Mega Slim Solar Panel
  • Panel Leads (Pair): 12AWG
  • IP65 Rated waterproof junction box
  • IP67 Rated waterproof solar connectors

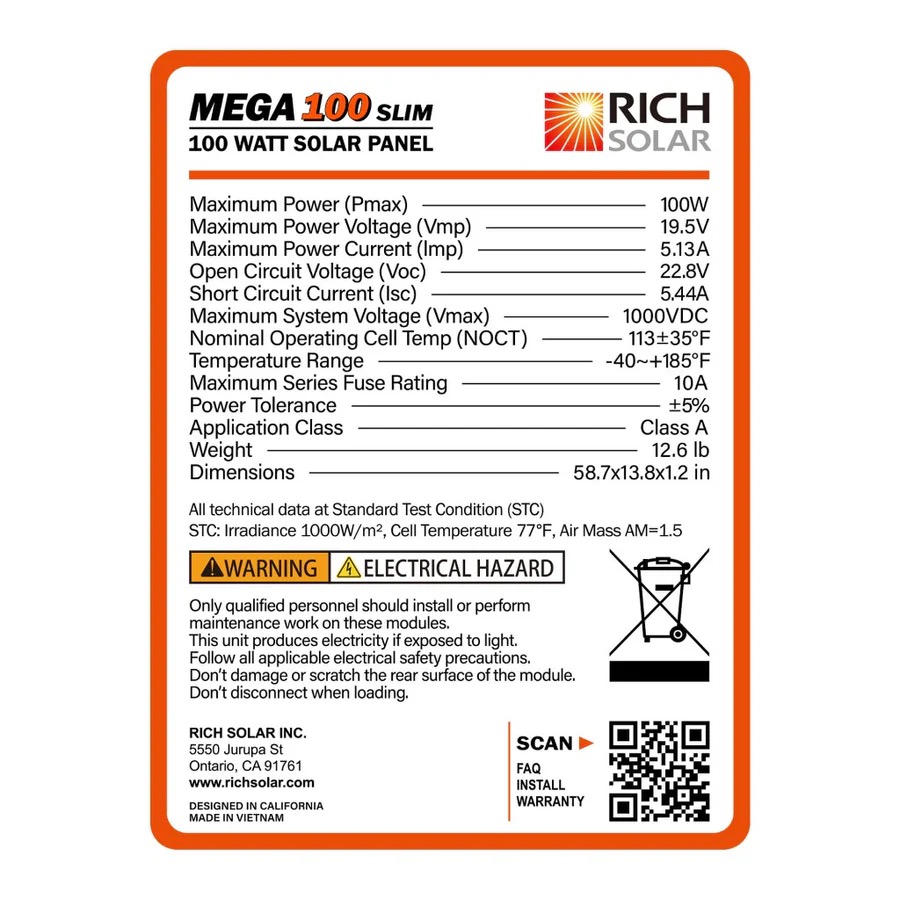

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 19.5V
  • Maximum Power Current(Imp): 5.13A
  • Open Circuit Voltage(Voc): 22.8V
  • Short Circuit Current(Isc): 5.44A
  • Maximum System Voltage(Vmax): 1000V DC
  • Weight: 12.6 lb
  • Dimensions: 58.7 x 13.8 x 1.2 in


Start with the customer – find out what they want and give it to them.

Specifications

Open Circuit Voltage-VOC 21
Peak Power Watts-PMAX (Wp) 100
Maximum Power Voltage-VMPP (V) 18
Short Circuit Current-ISC (A) 5.93
Maximum Series Fuse Rating 15A
